Mounting Spare Air
Each Spare Air Package includes a holster making it easy to attach your Spare Air to your BC.
The Spare Air 170 Package includes a sized Holster (PN:971) with two quick release straps.
The Spare Air 300/300-N Package includes a sized Holster (PN:973) with two quick release straps.
The Spare Air 600 Package includes a sized Holster (PN:976) with two quick release straps for mounting.
Models 170, 300 & 300-N
With just 2 simple clicks, Spare Air can be mounted to your BC and you're ready to go diving!
Using the Covered Holster included in the Spare Air 170 and 300 package, mounting is quick and easy, and keeps Spare Air close at hand - yet you don't even know you're wearing it. Practice pulling the Spare Air out of the holster when diving in a non-emergency situation.
Depending on your equipment and the way it is set-up, you can mount Spare Air anywhere that is most convenient for you such as:
1

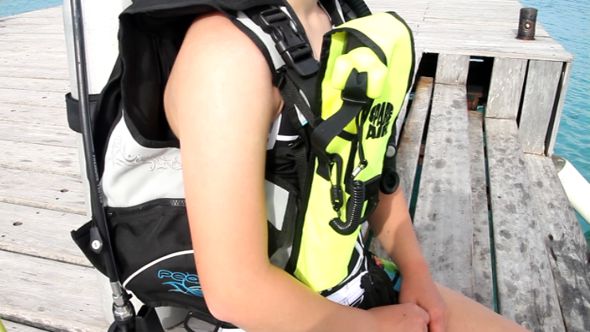

Shoulder Mount: Attach top holster strap to shoulder strap and bottom holster strap to D-ring.
2

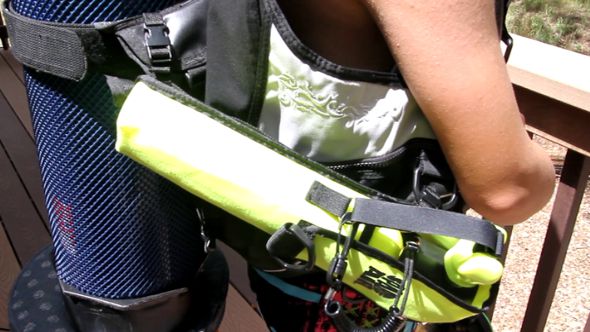

D-ring Mount: Attach bottom holster strap to tank strap and top holster strap to D-ring.
3

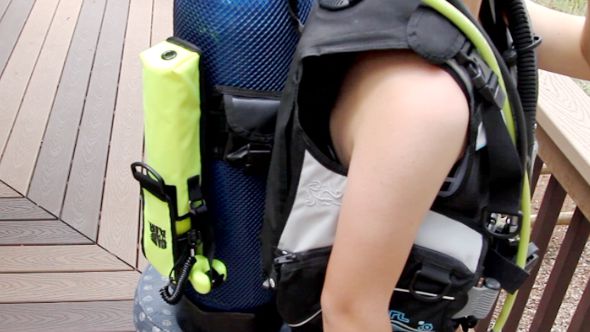

Tank Mount: Thread tank strap through holster mounting strap sewn to back of holster (some stitching may need to be carefully removed to accommodate broader tank straps). Holster straps are not used.
4

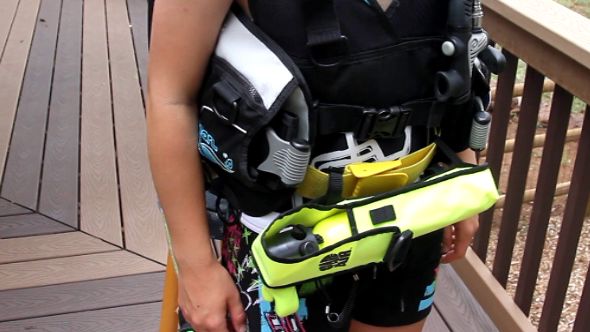

Extra Weight Belt Mount: Ever wondered what to do with that old weight belt you no longer use. Attach holster straps to a weight belt not being used for buoyancy adjustment.
Model 600
The new Spare Air 600 Holster is designed like the smaller 3 cu ft model and uses two clips that easily connect your Spare Air to any BC strap and D-Rings. The below mounting is shown using our old holster design, but the new holster mounts to the same points as shown.
1

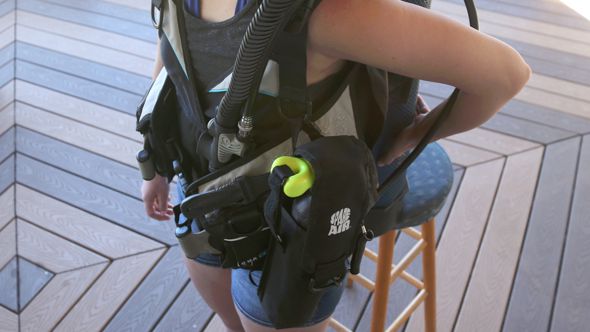

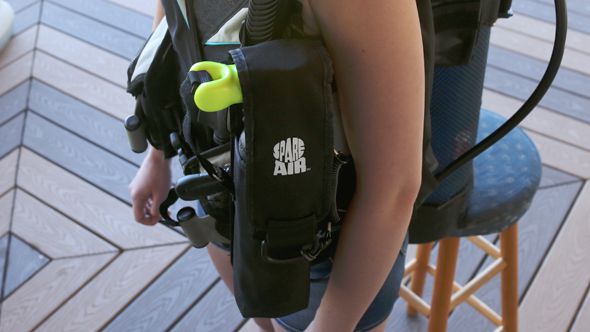

Shoulder D-ring Mount: Attach top holster clip to shoulder strap and bottom holster clip to D-ring.
2

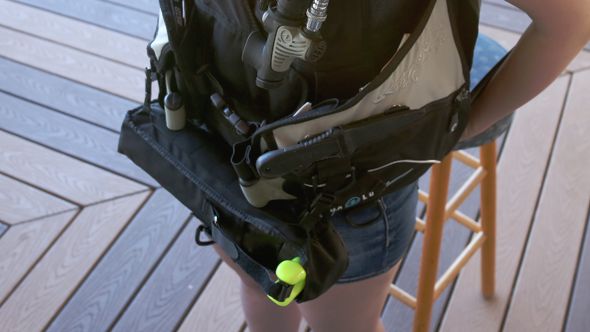

Cummerbund Mount: Slip the Velcro holster strap through the cummerbund on BC between shoulder strap and bladder.
3
D-Ring Mount: Use clips to attach to any two extra D-Rings on BC
Mounting the Spare Air 600 upside-down on the tank is not recommended. The unit is difficult to deploy from this position and, over time, gravity may force the Spare Air tank to open the holster allowing the unit to fall out. Be sure to utilize the included safety leash to prevent accidental loss.
Additional Mounting Features:

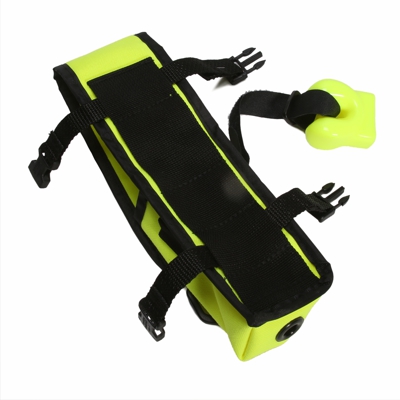

Spare Air 170/300 Holster
- Holster for Spare Air 170/300 in neon yellow for safety.
- Full covered holster protects the Spare Air from wear and tear. Holster comes with mouthpiece cover and lanyard.
- The Holster includes two adjustable quick-release straps to mount the Spare Air on your BC, tank, or wherever you desire.
- Just pick where to attach holster, tighten the straps and go!

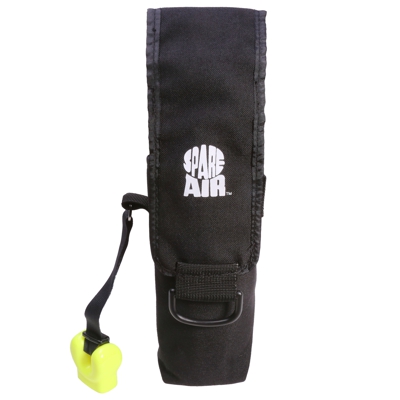

Spare Air 600 Holster
- Holster for Spare Air 600 comes in Black with Yellow Mouthpiece Cover.
- Covered holster protects the Spare Air Cylinder from wear and tear.
- New easy-access design allows quick deployment in an emergency.

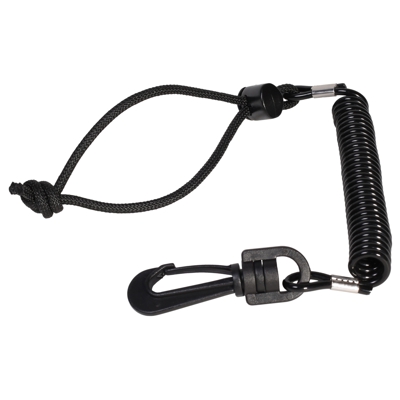

Safety Leash
- A Safety Leash is included in the Spare Air package so you don't have to ever worry about dropping or losing your Spare Air - no matter where you put it.
- Clips to any hard point on your BC. Quickly un-clip if you need to hand off your Spare Air to your buddy or other diver.
- Drawstring slips over tank; no need to remove regulator to attach.

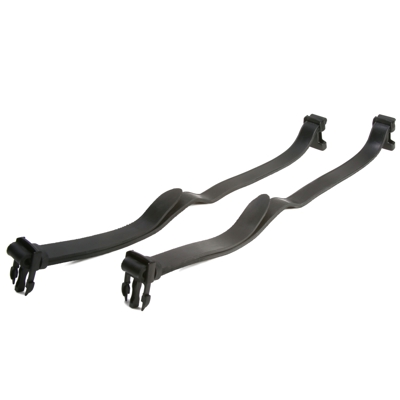

Rubber Leg Straps
- An optional accessory, Leg Mount Straps offer additional mounting options.
- Rubber straps ideal for mounting your Spare Air to your thigh or leg.
